ピンタイプトランス／PIN TYPE POWER TRANSFORMER

TYPE
ピン本数
Ｋｐ
Ｋｓ
Ｐ
ピン径
Ｌ
Ｗ
Ｈ
出力VA

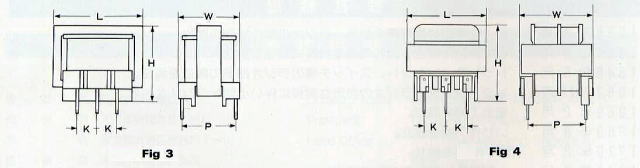

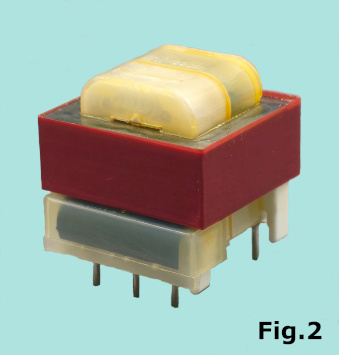

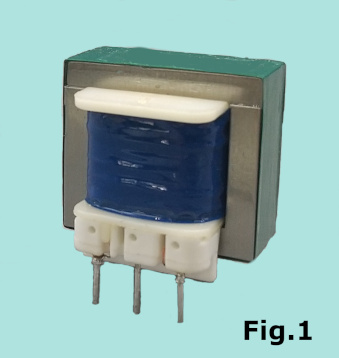

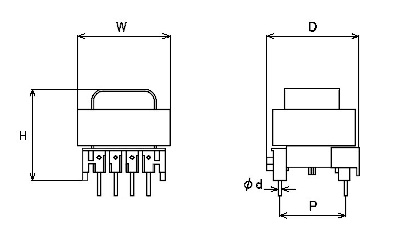

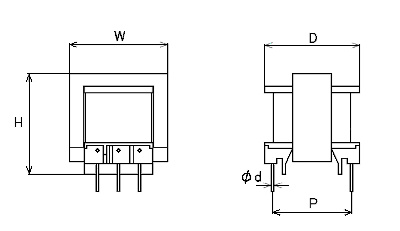

Fig
NPT-24-11
2/3
10
5.0
17.3
φ1.0
24.5
22.5
22.0
0.5
3
PT-28-11
3/3
6.0
6.0
20.0
φ0.8
28.5
27.5
28.5
0.8
3
LPT-28-11
3/4
7.5
5.0
22.5
φ0.8
28.5
32.0
26.5
0.8
3
FTP-28-11
4/4
3.81
3.81
20.0
φ0.8
28.5
25.0
26.5
0.8
3
NPF-28-7
3/4
7.5
5.0
20.5
φ1.0
28.5
26.0
22.0
0.5
4
NPF-28-11
3/4
7.5
5.0
20.5
φ1.0
28.5
26.0
27.5
0.8
4
HPT-28-11
3/4
7.5
5.0
20.5
φ1.0
28.5
28.0
28.0
0.8
4
LHPT-28-11
3/4
7.5
5.0
20.5
φ0.8
28.5
32.0
25.0
0.8
4
NPF-28-13
3/4
7.5
5.0
20.5
φ1.0
28.5
26.0
29.0
1.1
4
PT-35-10
3/3
6.0
6.0
24.0
φ0.8
35.5
30.0
32.0
1.0
3
NPF-35-6.4
3/4
12.0
10.6-6.5-6.5
26.8
φ1.0
35.5
34.0
21.0
0.8
4
NPF-35-10
4/4
6.0
5.0
22.5
φ1.0
35.5
30.0
28.0
1.0
4
NPF-35-12
3/4
7.5
5.0
22.5
φ0.8
35.5
30.0
31.0
1.2
4
HPT-35-12
3/4
7.5
5.0
22.5
φ0.8
35.5
31.0
31.5
1.1
4
LHPT-35-12
3/4
7.5
5.0
22.5
φ0.8
35.5
33.0
32.0
1.1
4
PTE-41-14
4/4
6.0
6.0
32.5
φ1.0
41.5
40.0
36.0
3.5
3
PT-41-17
4/4
6.0
6.0
35.0
φ1.0
41.5
42.0
36.0
5.0
3
PTE-41-17
4/4
6.0
6.0
35.0
φ1.0
41.5
42.0
36.0
5.0
3
NLPF-41-9
4/4
6.0
5.0
27.0
φ1.0
 41.5
36.0
21.5
1.2
4
NPF-41-9.6
4/4
10-8.5-7.5
11-7.5-7.5
29.5
φ1.0
41.5
35.5
24.0
1.4
4
NPF-41-13
4/4
6.5
7-5.5-7
23.2
φ1.0
41.5
33.5
35.5
2.8
4
NPF-41-14
3/4
7.5
7.5
25.0
φ1.0
41.5
34.5
35.5
3.0
4
NPF-41-17
4/4
6.5
7-5.5-7
23.2
φ1.0
41.5
33.5
41.0
5.0
4
HPT-41-17
5/5
5.0
5.0
22.5
φ1.0
41.5
34.5
41.0
4.0
4
NHPT-41-20
4/6
7.5
5.0
23.0
φ1.0
41.5
33.5
42.0
4.5
4
PT-48-20
4/5
7.5
5.0
37.5
φ1.0
48.5
45.5
41.0
8.0
3
NHPT-48-10
5/6
7.5
6.0
27.5
φ1.0
48.5
40.5
29.5
2.3
4
HPT-48-20
5/5
7.5
7.5
27.5
φ1.0
48.5
41.0
44.0
8.0
4
HPT-48-25
5/5
7.5
7.5
27.5
φ1.0
48.5
41.0
47.5
13.0
4
PT-54-23
4/6
7.5
6.0
42.0
φ1.0
54.5
49.0
48.0
16.0
3
HPT-54-25
5/7
7.5
5.0
30.0
φ1.0
54.5
50.0
50.5
16.5
4
